CNC Compact Machining Centers
BT30 High Precision Vertical Compact Machining Centers up to 700mm on X axis
CNC Compact Machining Centers
SPEEDIO Serie S-Xd2
Request a quote
To request pricing, availability, or additional information about this product, contact our sales team.
mail Go to contactDescription

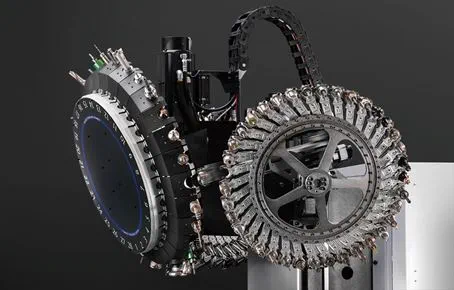

SPEEDIO’s bestselling model that further expands the series' range of applications. An extensive range of magazine specifications, including the newly developed100-tool magazine, spindle specifications, simultaneous 5-axis specifications and enlarged machining area ensures a variety of machining applications.
Technical information
S-300Xd1Recorrido de ejes (mm): x:300, y:450, z:300 Distancia de mesa a husillo: 180~480mm Área de trabajo / Herramientas: 600x500mm / 14,21 Velocidad de husillo / potencia: 12,000min-1, 12.8 kW / Opcional hasta 27,000min-1, 8.9kW |
S-500Xd1Recorrido de ejes (mm): x:500, y:450, z:300~380mm Distancia de mesa a husillo: 180~480mm Área de trabajo / Herramientas: 600x500mm / 14,21,28 Velocidad de husillo / potencia: 12,000min-1, 12.8 kW / Opcional hasta 27,000min-1, 8.9kW |
S-700Xd1Recorrido de ejes (mm): x:700, y:450, z:300~380mm Distancia de mesa a husillo: 180~480mm Área de trabajo / Herramientas: 800x500mm / 14,21,28,100 Velocidad de husillo / potencia: 12,000min-1, 12.8 kW / Opcional hasta 27,000min-1, 8.9kW |
Applications
- High Presicion Machining
- General Machining
- High-volume manufacturing
- Ideal for automotive, medial or aerospace applications
